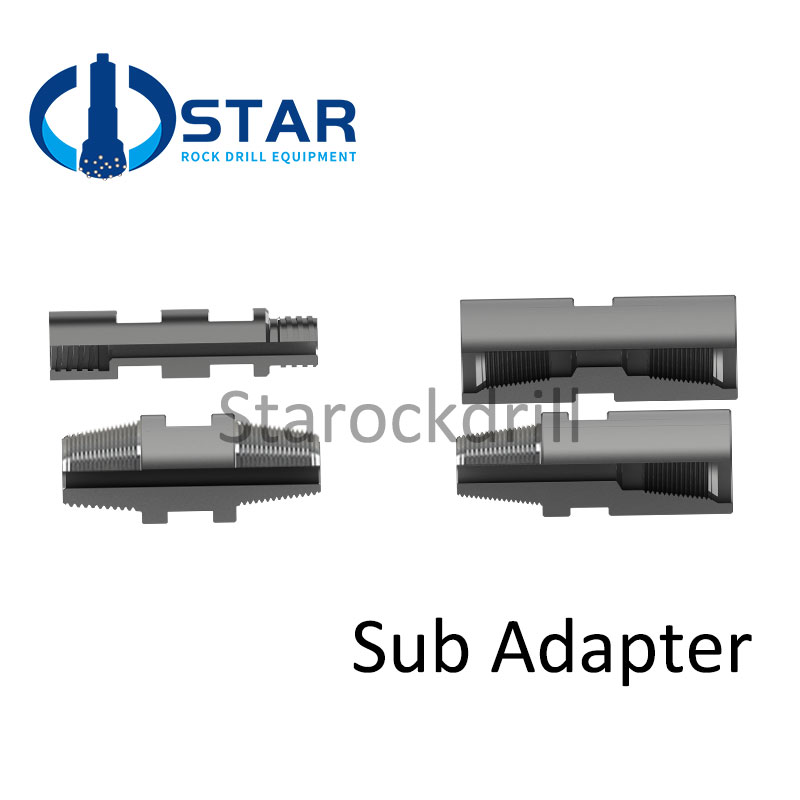

Sub Adapter

Type：Box to Box, Pin to Pin, Box to Pin
Thread: API REG，IF,BECO
Max length: 600mm
Max diameter: 350mm
2-3.8 Pin - 2-7.8 Box Sub Adatper
2-3.8 Pin-2-3.8 Box Sub Adapter
2-7.8 Pin - 2-3.8 Box Sub Adapter
2-7.8 Pin - 3-1.2 Box Sub Adapter
3-1.2 Pin-2-7.8 Box Sub Adapter

Description
Inquiry

The sub adapter from STAROCKDRILL has a number of leading level of elector-hydraulic forging hammer,

to control atmosphere furnace heat treatment production line and excellent Seiko CNC machine tool production equipment.

All parts CNC machining, the key technology of CNC control to ensure that the products of high quality, high reliability.

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly.

Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

Type：Box to Box, Pin to Pin, Box to Pin

Thread: API REG，IF,BECO

Max length: 600mm

Max diameter: 350mm

2-3.8 Pin - 2-7.8 Box Sub Adatper

2-3.8 Pin-2-3.8 Box Sub Adapter

2-7.8 Pin - 2-3.8 Box Sub Adapter

2-7.8 Pin - 3-1.2 Box Sub Adapter

3-1.2 Pin-2-7.8 Box Sub Adapter

Supply customize design with your requirements

Advantages:

1.More abrasive and longer working life
