DrillingCode: STRSD6
Material: 25SiMnCrNi2MoVA
Tungsten carbide : YK05 (T6)
Processing : Forging
Application: Mining, Blasting, Quarry,Water Well drilling
BIT Shank: SD6
Bit Diameter: 152-203mm

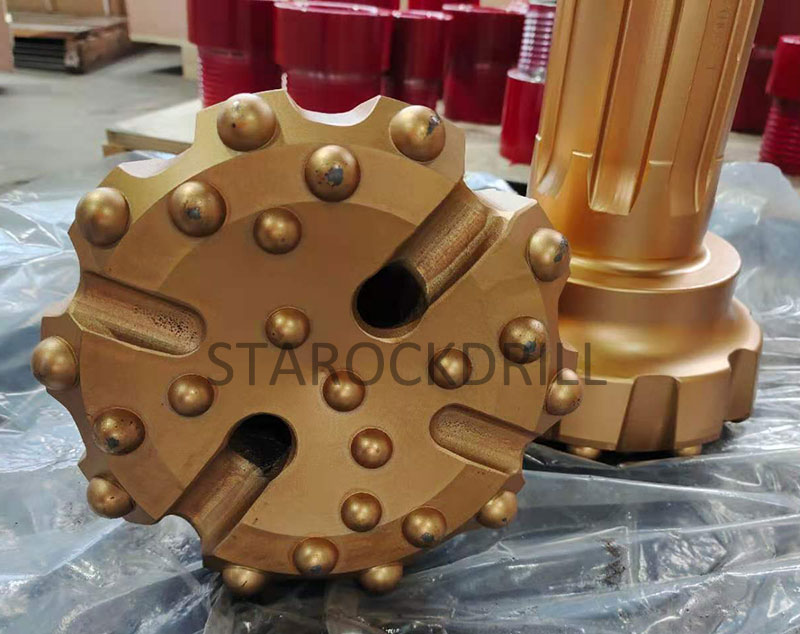

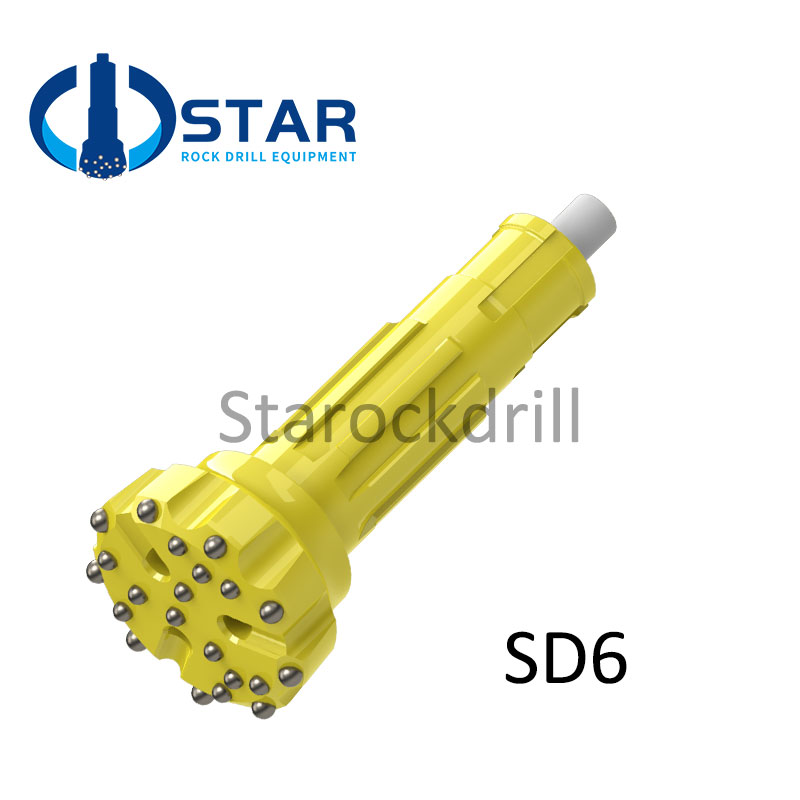

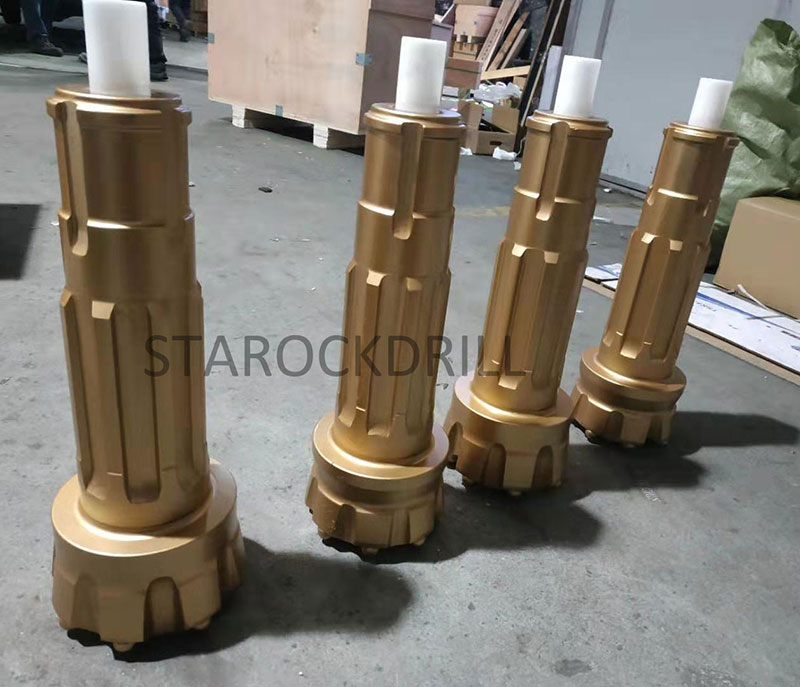

SD6 DTH Hammer Button Bits, SD6 DTH Hammer Bits, SD6 DTH Drill Bits, SD6 DTH Bit, SD6 Bit are names of sandvik SD6 Shank hammer bits.
All the STAROCKDRILL Bits are made from high quality tungsten carbide steel,is precision machine to produce a perfect body.
They are then heat-treated to the right hardness, facilitating excellent surface compression and fatigue resistance.
Manufactured in-house, each bit is finally fitted with the required shape and sized buttons.
A wide range of down the hole bits, these range from 2"to 20" in diameter and fit many hammers such as Ingersoll-Rand, Mission, Atlas Copco etc.
For the most effective operation in various drilling conditions, we offer flat face, concave, drop centre head designs.
STAROCKDRILL is also supplying DTH Hammers, DTH Bits, DTH Drill Rods, ODEX Casing system. Symmetric casing system, RC Hammers, RC Bits,
RC Rods, Threaded Bits, Tapered Bits, Drill Rods, back hammers and sub adapters.

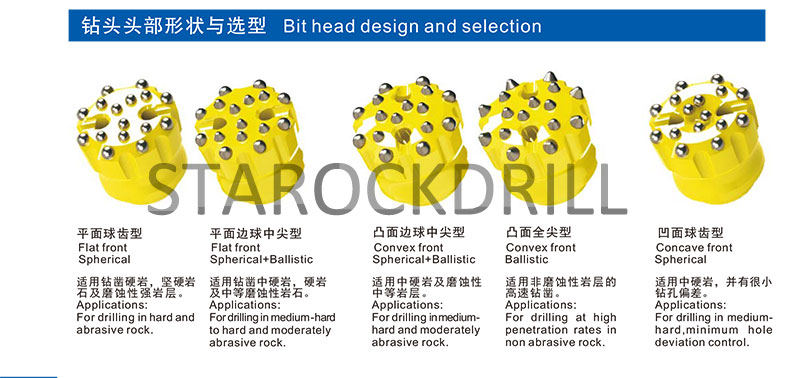

STAROCKDRILL commonly has three basic bits head designs: Flat Face, Convex and Concave.
These are designed for specific applications for all rock types, hardness’s and conditions.
STAROCKDRILL Manufacturing higher quality DTH Bits with SD6 shank, which can be designed with customers’ requirements.
This shank have foot value and without foot value.
Advantages:
1.More stable drilling at work.
2.Avoid some problems which the air compressor is not stable
3.The drilling holes are straightly
4.Easy operation and replaced other brand
How to order:
DTH BITS: BIT SHANK + DIAMETER (NEED FOOT VALUE OR NOT)
(We are customizing customer on bit face and button shape)
