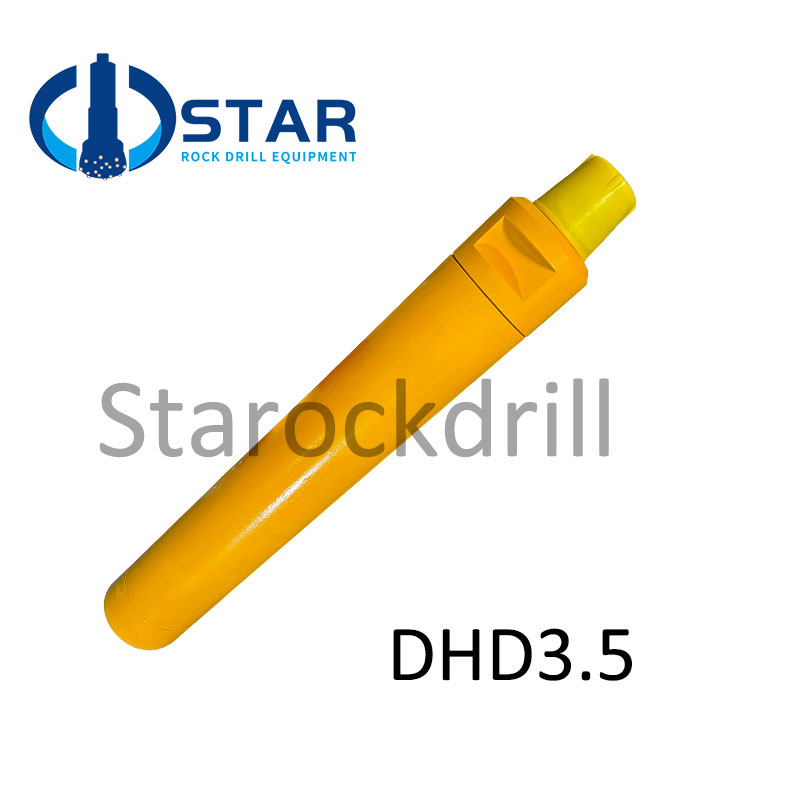

DHD3.5 DTH HAMMER

1. High grade tungsten carbide inserts

2. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
3.Hammer front structure design: when pulling out the hammer,the last impact of the piston would fall on the step of piston case,ensuring the safety of the driver sub splines and the retainer ring.
4.Save Lubrication Oil
5.East operation and fix
6.Longer working life

Description
Inquiry

STAROCKDRILL is one the professional manufacturer and supplier of high performance rock drilling tools like :

DTH Hammers and Bits. PC Hammers and Bits, DTH drilling pipes and Top Hammer Drilling Tools.

Our tools are widely used in different drilling applications including mining,quarrying, water well drilling, geotechnical industries and etc.

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bitlittle energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

How to order?

Hammer shank + Inches

(If you are not knowing the sizes, we can give you suggestions on hammers and bits)
