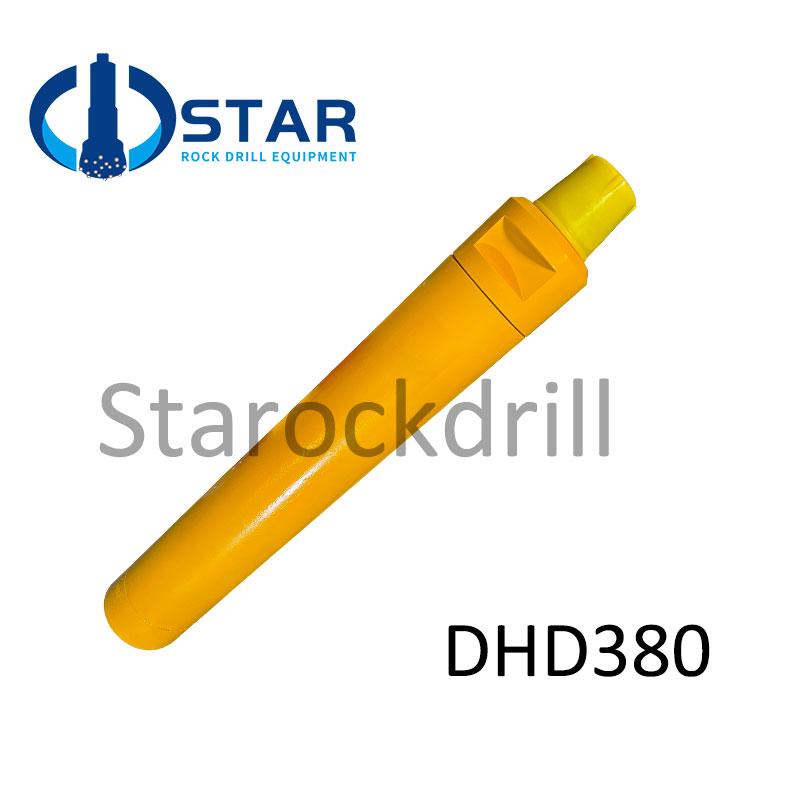

DHD380 DTH HAMMER

8 inch High Pressure DTH Air Drill Hammer DHD380 is very popular in international deep well drilling field.
It is widely used in international deep well drilling field.
DHD 8" DTH Drill Hammer drill holes from 203mm to 350mm.
We also supply other 6",5",8",12" High Pressure DTH Air Drill Hammers and various matched drill bits,

Description
Inquiry

STAROCKDRILL’S DTH hammers mainly be produced with shank type of DHD, QL, NUMA, COP, Mission, SD, BR, CIR,TD.40 MACH44 and STR series,

Diameter ranging from 2” to 8” for mining and quarrying, and 6” to 32” for water-well drilling, oil-well drilling and foundation and so on

Advantage:

1.Heat treated piston and internal cylinder guiding system is reasonably structured to achieve the highest efficiency and the largest impacting power.

The penetration speed is 10%-30% faster than other products of the same type.

2.Fine CNC machining tolerance and specifications coupled with

quality assembly lead to great reliability and performance.

3.Hammer front structure design: when pulling out the hammer,the last impact of the piston would fall on the step of piston case,

ensuring the safety of the driver sub splines and the retainer ring.

4.Save Lubrication Oil

5.East operation and fix

6.Longer working life

How to order?

Hammer shank + Inches

(If you are not knowing the sizes, we can give you suggestions on hammers and bits)

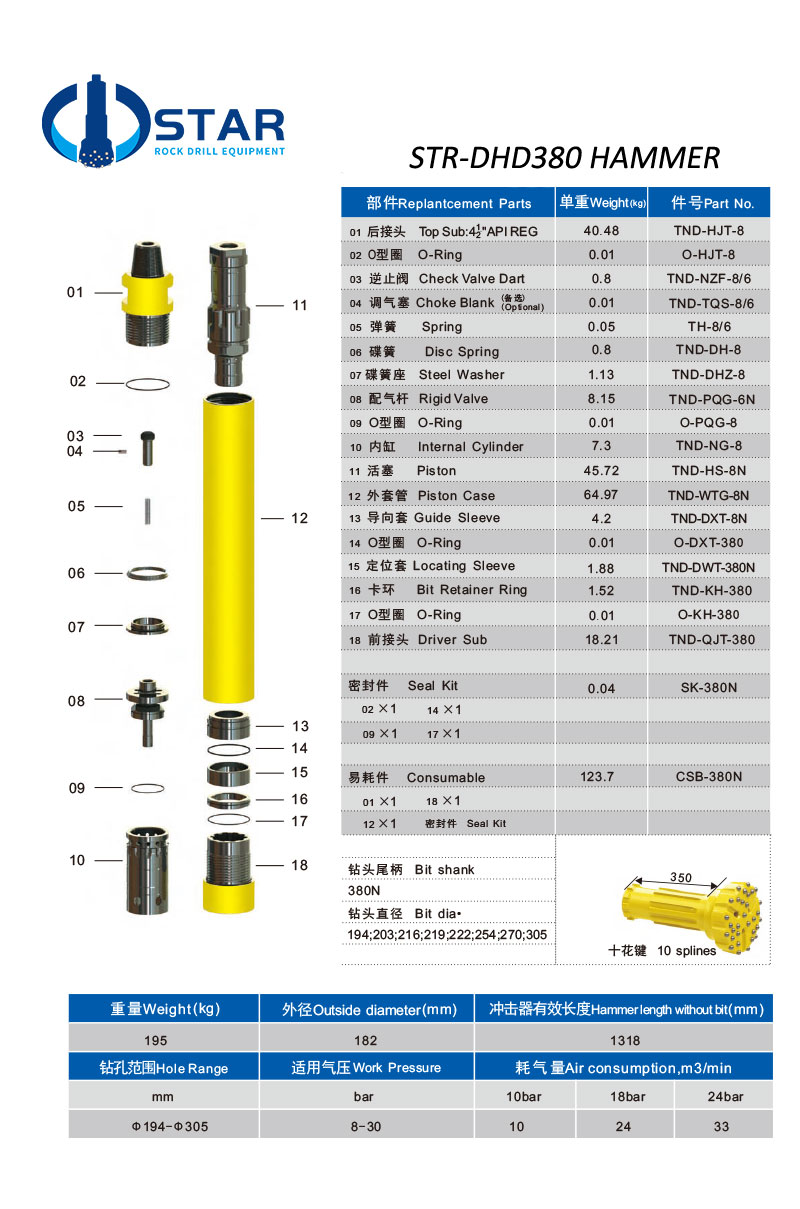

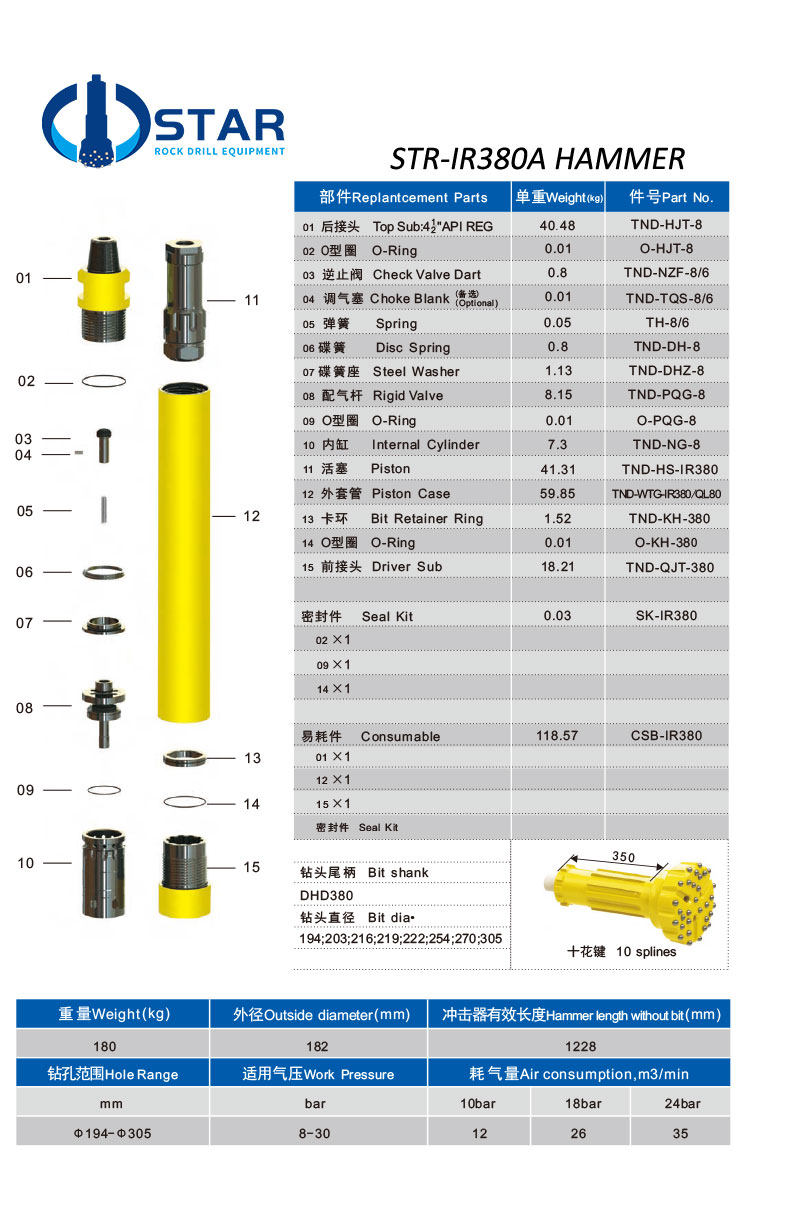

DHD380A DTH HAMMERS.jpg DHD380 HAMMER.jpg
