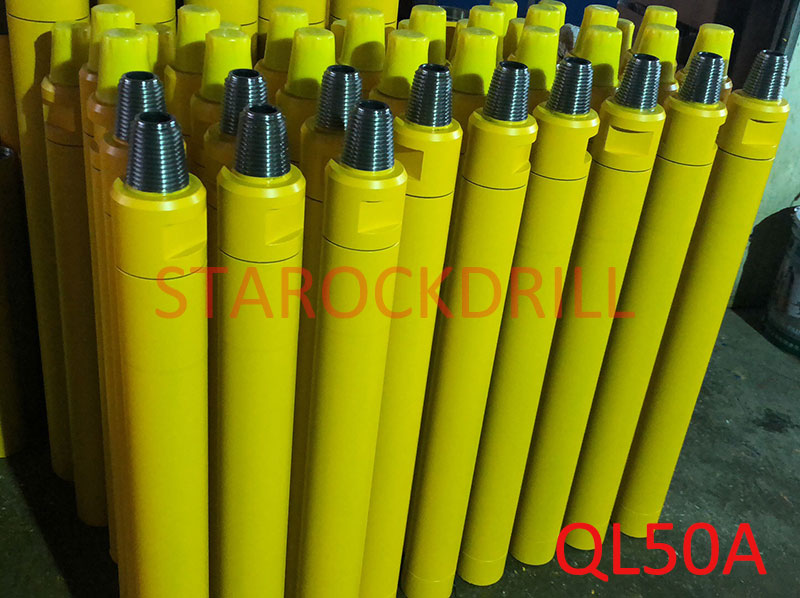

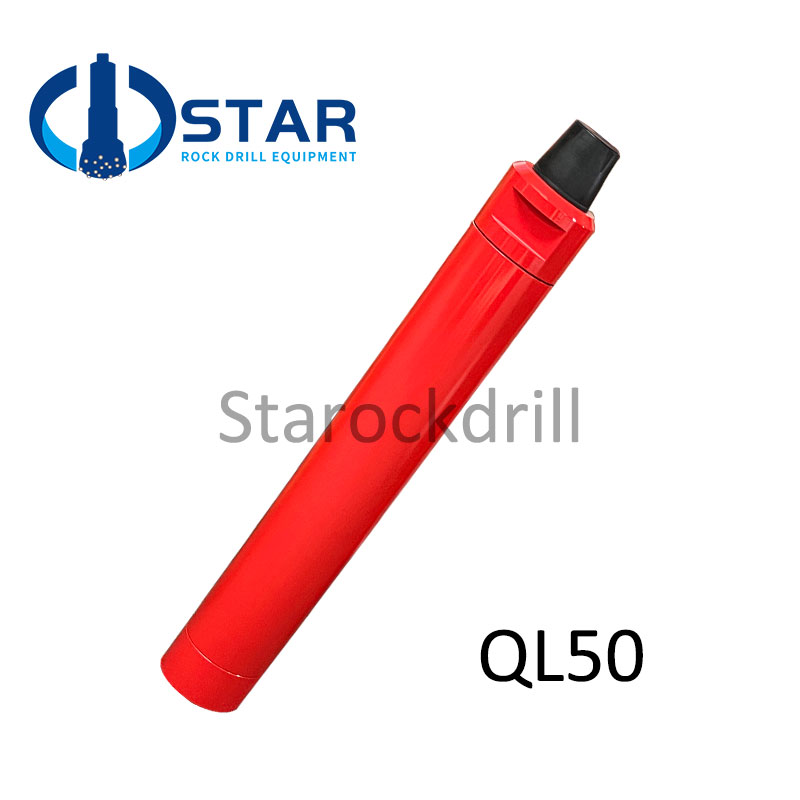

QL50 DTH HAMMER

1.Heat treated piston and internal cylinder guiding system is reasonably structured to achieve the highest efficiency and the largest impacting power.The penetration speed is 10%-30% faster than other products of the
same type.
2.Fine CNC machining tolerance and specifications coupled with
quality assembly lead to great reliability and performance.
3.Hammer front structure design: when pulling out the hammer,the last impact of the piston would fall on the step of piston case,ensuring the safety of the driver sub splines and the retainer ring.
4.Save Lubrication Oil
5.East operation and fix
6.Longer working life

Description
Inquiry

DTH drilling is a percussion system driving a piston inside hammer body with up and down motion by compressed air and transmitting an intensive percussion energy to the bit to enable the drilling by crushing the rock. Drilling method by DTH hammer exerts high drilling performance especially for drilling hard rock and contributes for shortening work schedule. Hence, this method is widely utilized for foundation work, landslide prevention work, quarrying services, marine civil work, etc.

STAROCKDRILL’S’ DTH hammers are all simple structure, easy to assemble and disassemble, as well as reliable quality and long service life. STAROCKDRILL has various hammer models suitable to drill holes from 64mm to 1000 mm (2-1/2” ~ 39-3/8”) in diameter; and come with three kind: low pressure (5 ~ 7 bars), middle pressure (7 ~ 15 bar) and high pressure (7~ 30 bars).

STAROCKDRILL’S DTH hammers mainly be produced with shank type of DHD, QL, NUMA, COP, Mission, SD, BR, CIR,TD.40 MACH44 and STR series, Diameter ranging from 2” to 8” for mining and quarrying, and 6” to 32” for water-well drilling, oil-well drilling and foundation and so on.

How to order?

Hammer shank + Inches

(If you are not knowing the sizes, we can give you suggestions on hammers and bits)
