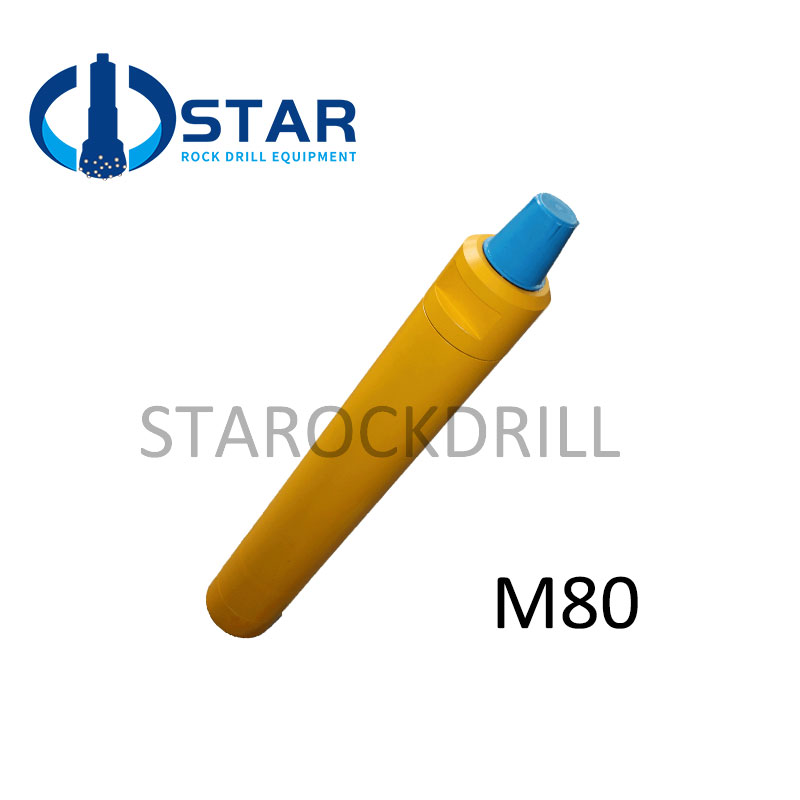

M80 DTH HAMMER

Valveless air distribution. More reliable.
- Simple design of the piston. Long life.
- More efficient energy transfer, fact drilling speed, lower air consumption and lower oil consumption.
- Fewer internal parts, simple structure, long life, less failure and easier to maintain because all the parts are heat treated.
- Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread.

Description
Inquiry

DTH hammers and bits are widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering. it has the advantage of high flatness, smooth hole wall, high rigid of drill rod and hammer, independent of high axial thrust, no limit of drilling depth, low cost of devices and easiness to maintain..

STAROCKDRILL’S DTH hammers mainly be produced with shank type of DHD, QL, NUMA, COP, Mission, SD, BR, CIR,TD.40 MACH44 and STR series, Diameter ranging from 2” to 8” for mining and quarrying, and 6” to 32” for water-well drilling, oil-well drilling and foundation and so on

How to order?

Hammer shank + Inches

(If you are not knowing the sizes, we can give you suggestions on hammers and bits)
