The advantages of drilling with M/F extension drill steel include: easy handling, quicker uncoupling, tighter connections and the potential to drill straighter holes. Used for both surface and underground applications on larger hydraulic top hammers

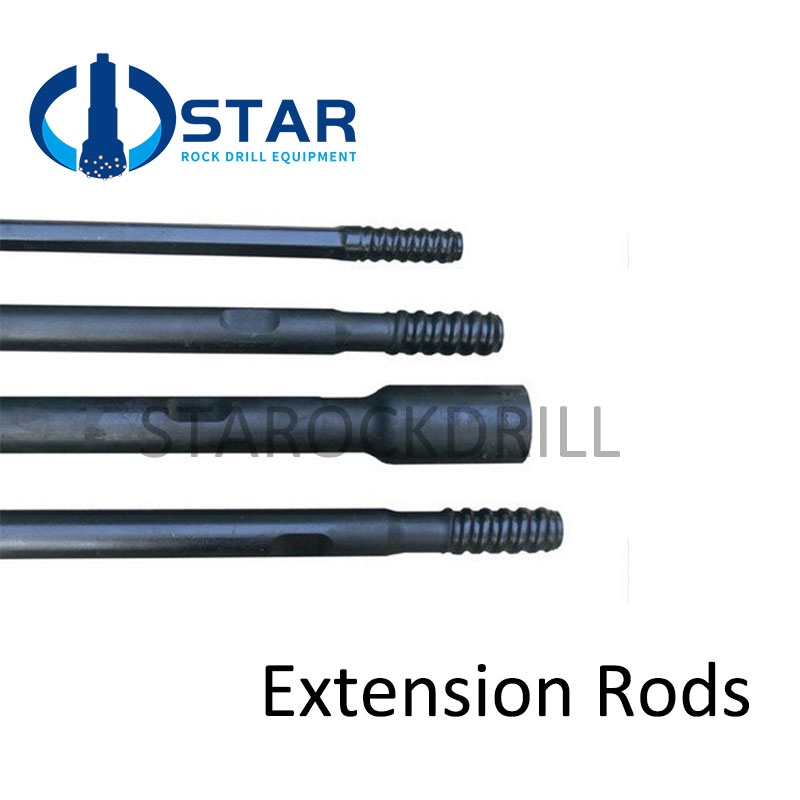

STAROCKDRILL’S drifting and extension drill rods are for in drifting, tunneling, long-hole drilling, bench and production drilling industries.

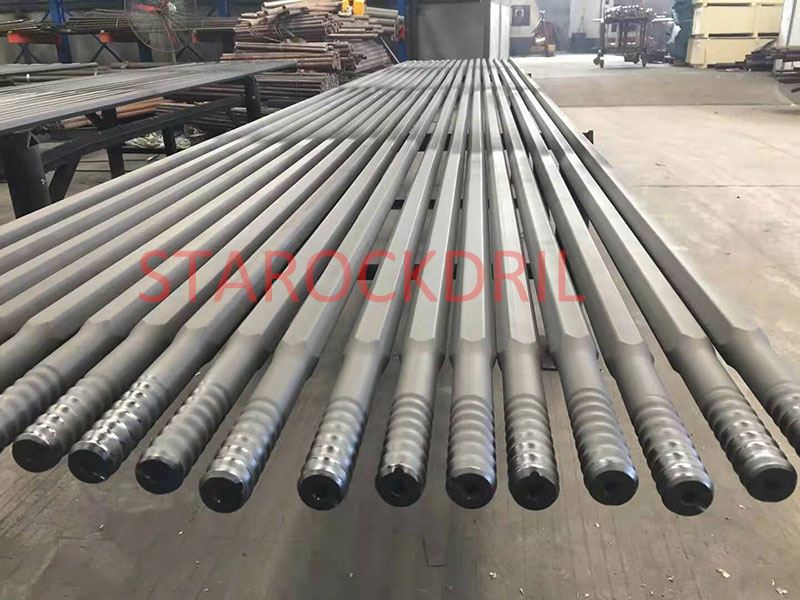

These rods are produced with round or hexagonal sections in all common thread designs, and in Male/Male (M/M) or Male/Female (M/F) connections.
All our drifting and extension drill rods are heat-treated with carburization or high frequency, contaminated with phosphorylation.

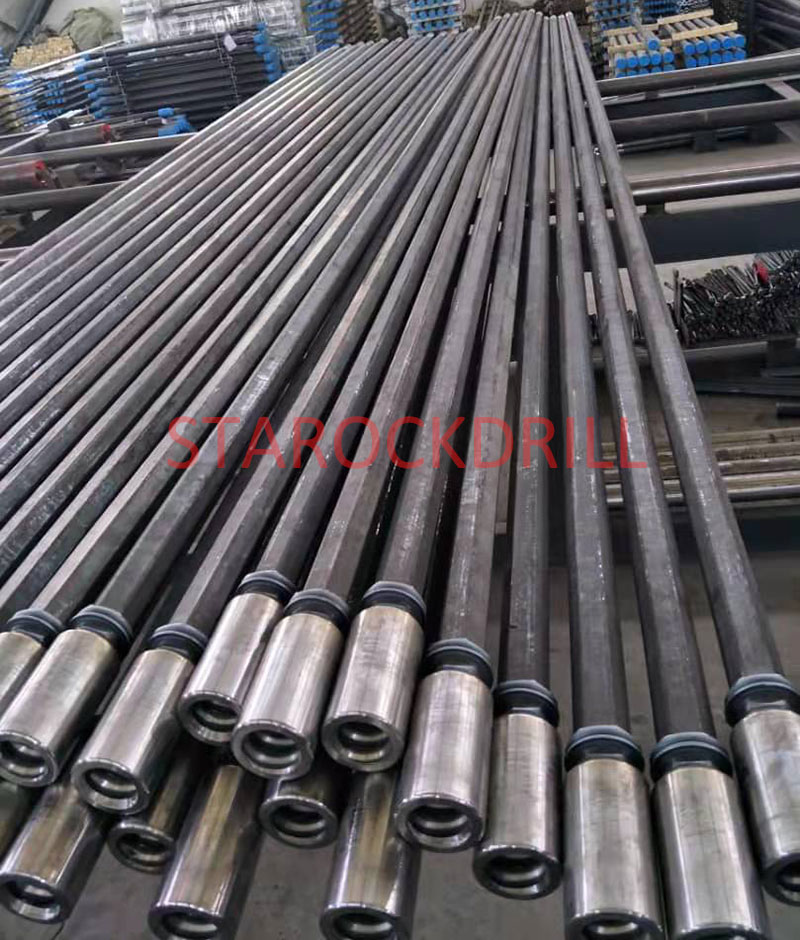

M/F rods provides tighter connections and is easier for handling and quicker for uncoupling than M/M rods, and are potential to drill straighter holes.
Carburization technique is mainly used in the production of big diameter rods to ensure excellent performance.
Carburizing is for hardening entire rod to provide an external over entire rod surface area.
Carburized steels are used primarily in underground applications and where water is used as a flushing medium.
High Frequency technique is primarily used in the production of small diameter rods to reduce fragileness of drill steels.
High Frequency is for hardening only the thread ends of the rod.
This provides the longevity of the product as well as being more suitable for more drilling condition need.
Rods Dimension | Length | Driven Thread | Suitable Bits Thread | Drilling Hole Range | ||||
M-M | M-F | |||||||
mm | foot | mm | foot | mm | inch | |||
Hex.25 | 915 ~ 3700 | 3 ~ 12 | 610 ~ 1220 | 2 ~ 4 | R25, R28, R32 | R25 | 33 ~ 51 | 1 19/64 ~ 2 |
Hex.28 | 2100 ~ 4920 | 6 3/4 ~ 16 | 1220 ~ 3050 | 4 ~ 10 | R28, R32, R38 | R28 | 37 ~ 51 | 1 29/64 ~ 2 |
Hex.32 | 2400 ~ 5530 | 7 7/8 ~ 18 | R28, R32, R38, T38 | R32 | 40 ~ 64 | 1 37/64 ~ 2 1/2 | ||
Round32 | 915 ~ 4310 | 3 ~ 14 | 915 ~ 4270 | 3 ~ 14 | R32, R38, T38 | R32 | 45 ~ 64 | 1 3/4 ~ 2 1/2 |
Hex.35 | 2670 ~ 6100 | 8 5/8 ~ 20 | 3700 ~ 6400 | 12 ~ 21 | R32, R38, T38 | R32 | 45 ~ 76 | 1 3/4 ~ 3 |
Round39 | 610 ~ 6095 | 2 ~ 20 | 610 ~ 6095 | 2 ~ 20 | R38, T38, T45 | T38, T45 | 57 ~ 89 | 2 1/4 ~ 3 1/2 |
Round46 | 1830 ~ 6095 | 6 ~ 20 | 1525 ~ 6095 | 5 ~ 20 | T38, T45, T51 | T45, T51 | 70 ~ 102 | 2 3/4 ~ 4 |
Round52 | 3050 ~ 6095 | 10 ~ 20 | 1525 ~ 6095 | 5 ~ 20 | T45, T51 | T45, T51 | 76 ~ 127 | 3 ~ 5 |
